Body Composition Analyzer for Precision Research

EchoMRI™ leads in body composition analysis, using Quantitative Magnetic Resonance (QMR) to measure fat mass, lean mass, free water, and total body water.Trusted in research, it offers non-invasive measurements without anesthesia.

Adaptable to various research needs,EchoMRI™ handles samples from 7g to 250 kg, showcasing versatility. With rapid measurement times of 0.5 to 3.5 minutes per sample, it streamlines workflows in research and clinical settings,providing precise and convenient technology for insights into body composition.

Globally trusted by 80 pharmaceutical companies, 150 universities, and major research institutions across the Europe, EchoMRI™ is an essential tool for studying responses to drugs, genetics, diet, and aging. It aids in clinical trials and drug efficacy assessments for both animals and humans in metabolic and obesity research. Zinsser Analytic oversees European distribution, emphasizing dedication to scientific progress. Backed by a registered trademark, EchoMRI™ signifies quality and reliability in body composition analysis.

For more information about EchoMRI™ or other tools of interest, please contact us.

The EchoMRI™-100H is an advanced body composition analysis system designed for precise measurements and versatility. Here are its key features:

General:

• Dimensions: 24”W x 24”D x 49”H / 61cm x 61cm x 125cm
• Weight: Approximately 495lbs / 225Kg
• Instrument Power: 1 outlet at 115/230 VAC, 50-60 Hz, 500 W, 8A/4.5A
• Shielding: The rack fully contains the 5-Gauss magnetic field, with exceptions for two 9”-radius hemispheres at the bore opening and its opposite.
• Max Sample Mass: 100 grams
• Holders: 3 animal holders of custom-defined sizes (typically 20, 40, 60, 80, and 100 grams), with additional holders available.
• Mobility: Single-body system on 4 casters for easy relocation
• Warm-up Time: 5 - 10 minutes after turning power on

Interfaces:

• Operating System: Windows 10 Professional
• User Input: Keyboard, mouse, and ASCII files
• User Output: Monitor and files: ASCII, Excel, Access
• Communication Ports: 2 USB / 1 RJ45 CAT-5 10/100Mb network card
• Monitor: 17" LCD flat screen

Functions:

• Measuring Time: 0.5 - 3.2 minutes, depending on the precision option
• Calibration: Not required after installation
• Records: Automatically saved in the file system and database
• Measured: The whole body masses of Fat, Lean, Free Water, and Total Water

Other Max Sample Mass Options:

• 130 grams: Typical choices of holder sizes are 20, 40, 60, 80, 100, and 130 grams.

The EchoMRI™-100H provides researchers with a user-friendly and efficient tool for conducting comprehensive body composition studies.

The EchoMRI™ 3-in-1 is an advanced Body Composition Analyzer designed for versatile measurements. Here are its key specifications:

General:

• Dimensions: 24"W x 32"D x 49"H / 61cm x 80cm x 125cm
• Weight: Approximately 495lbs / 225Kg
• Instrument Power: 1 outlet at 115/230 VAC, 50-60 Hz, 500 W, 8A/4.5A
• Shielding: The rack fully contains the 5-Gauss magnetic field, except for hemispherical volumes of 3" radius at the upper opening of each bore.
• Max Sample Masses:

  • up to 100 grams - Mice probe
  • up to 7 grams - Tissue probe
  • up to 300 milligrams - Biopsy probe
• Holders: 3 animal holders of custom-defined sizes, 1 for each probe size
• Mobility: Single-body system on 4 casters for easy relocation
• Warm-up Time: 5 - 10 minutes after turning power on

Interfaces:

• Operating System: Windows 10 Professional
• User Input: Keyboard, mouse, and ASCII files
• User Output: Monitor and files: ASCII, Excel, Access
• Communication Ports: 2 USB / 1 RJ45 CAT-5 10/100Mb network card
• Monitor: 17" LCD flat screen

Functions:

• Measuring Time: 0.5 - 3.2 minutes, depending on the precision option
• Calibration: Not required after installation
• Records: Automatically saved in the file system and database
• Measured: The whole body masses of Fat, Lean, Free Water, and Total Water

Reduced Models:

• EchoMRI™-2in1: 2 bores for Mice up to 100 grams and Organs/Tissues up to 7 grams
• EchoMRI™-100V: 1 bore for Mice up to 100 grams

The EchoMRI™ 3-in-1 offers flexibility with its multiple probes, making it a powerful tool for comprehensive body composition analysis in research and clinical settings.

The EchoMRI™-4-in-1 is an advanced Body Composition Analyzer offering a comprehensive range of capabilities. Here are its key specifications:

General:

• Dimensions: 48"W x 28"D x 52"H / 121cm x 71cm x 132cm
• Weight: Approximately 830lbs / 380Kg
• Instrument Power: 1 outlet at 115/230 VAC, 50-60 Hz, 500 W, 8A/4.5A
• Shielding of Vertical Part: The rack contains the 5-Gauss magnetic field fully, except for hemispherical volumes of 3" radius at the upper opening of each bore.
• Shielding of Horizontal Part: The rack fully contains the 5-Gauss magnetic field, except for a 9”-radius hemisphere protruding from the rack at the bore opening and a similar hemisphere directly opposite to the bore opening..
• Holders for Vertical Bores: 3 holders of custom-defined sizes, one for each probe size. Additional holders are available.
• Holders for Horizontal Bore: 3 holders of custom-defined sizes, typically 300, 500, and 700 grams. Additional holders are available.
• Mobility: Single-body system on 6 casters for easy relocation
• Warm-up Time: 5 - 10 minutes after turning power on

Range:

• up to 700 g for the Rats (horizontal) probe
• up to 100 g for the Mice (vertical) probe
• up to 7 g for the Tissue/Organs (vertical) probe
• up to 0.3 for the Biopsy (vertical) probe

Interfaces:

• Operating System: Windows 10 Professional
• User Input: Keyboard, mouse, and ASCII files
• User Output: Monitor and files: ASCII, Excel, Access;
• Communication Ports: 2 USB / 1 RJ45 CAT-5 10/100Mb network card
• Monitor: 17" LCD flat screen

Functions:

• Measuring Time: 0.5 - 3.2 minutes, depending on the precision option
• Calibration: Not required after installation
• Records: Automatically saved in the file system and database
• Measured: The whole body masses of Fat, Lean, Free Water, and Total Water

Other Max Sample Mass Options:

• 500 grams: Typical choices of holder sizes are 300 or 500 grams.
• 900 grams: Typical choices of holder sizes are 300, 500, 700, or 900 grams.
• 1100 grams; Typical choices of holder sizes are 300, 500, 700, 900, or 1100 grams.

The EchoMRI™-4-in-1 provides researchers with a highly adaptable and efficient tool for conducting detailed body composition analyses across various sample sizes.

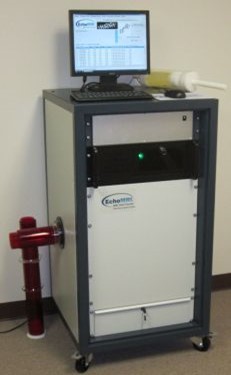

The EchoMRI™-500 is a high-performance Body Composition Analyzer, offering precise measurements and adaptability. Here are its key specifications:

General:

• Dimensions: 24"W x 32"D x 49"H = 61cm x 80cm x 125cm
• Weight: 495lbs = 225Kg
• Instrument Power: 1 outlet at 115/230 VAC, 50-60 Hz, 500 W, 8A/4.5A
• Shielding: Exceptions to the full containment of the 5-Gauss magnetic field inside the rack include a 9"-radius hemisphere protruding from the rack at the bore opening and a similar hemisphere directly opposite to the bore opening.
• Max Sample Mass: 500 grams
• Holders: 3 animal holders of custom-defined sizes, typically 300 or 500 grams. Additional holders are available.
• Mobility: Single-body system on 4 casters for easy relocation
• Warm-up Time: 5 - 10 minutes after turning power on

Interfaces:

• Operating System: Windows 10 Professional
• User Input: Keyboard, mouse, and ASCII files
• User Output: Monitor and files: ASCII, Excel, Access
• Communication Ports: 2 USB / 1 RJ45 CAT-5 10/100Mb network card
• Monitor: 17" LCD flat screen

Functions:

• Measuring Time: 0.5 - 3.2 minutes, depending on the precision option
• Calibration: Not required after installation
• Records: Automatically saved in the file system and database
• Measured: The whole body masses of Fat, Lean, Free Water, and Total Water

Other Max Sample Mass Options:

• 700 grams: Typical choices of holder sizes are 300, 500, or 700 grams.
• 900 grams: Typical choices of holder sizes are 300, 500, 700, or 900 grams.
• 1100 grams; Typical choices of holder sizes are 300, 500, 700, 900, or 1100 grams.

The EchoMRI™-500 provides researchers with a reliable and efficient tool for conducting detailed body composition analyses across various sample sizes, showcasing its versatility and precision.

The EchoMRI system offers specialized options for smaller animals and samples, providing precise and dedicated solutions for various research needs. Here are the details for each option:

P10:

• Description: Dedicated system test sample and holders for samples up to 7 grams
• Range: Samples up to 7 grams
• Compatibility: EchoMRI™-100/130
• Holder: 7 grams

A10:

• Description: Dedicated system test sample and holders for samples up to 7 grams with additional antenna/sensor insert for added sensitivity
• Range: Samples up to 7 grams
• Compatibility: EchoMRI™-100/130 and EchoMRI™-500/700/900/1100
• Dimensions: Cylinder 2"OD x 21"L / 50.8mm x 533.4mm
• Weight: Approximately 5lbs / 2.3Kg
• Holders: Sample holder 0.266"ID x 1"L / 6.8mm x 25.4mm

A100:

Description: Additional antenna/sensor insert. Dedicated system test sample and holders

• Range: Live animals up to 100 grams
• Compatibility: EchoMRI™-500/700/900/1100
• Dimensions: Cylinder 4"OD x 21"L / 101.6mm x 533.4mm
• Weight: Approximately 5lbs / 2.3Kg
• Holders: Typically 20, 40, 60, 80, and 100 grams

These specialized options cater to the specific requirements of researchers working with smaller animals and samples, ensuring accuracy and adaptability within the EchoMRI™ system.
